- For Blow-Thru Systems up to 22 PSI max boost or 1500 HP
- Adjustable up to 65 PSI
- External -8 AN bypass valve (adjustable)
- Cleanable filter
- Alcohol compatible
- Works with 12 or 16 volts
- 7 vane impeller
- -12 AN boss O-ring inlet & outlet ports
- Continuous duty
- 2 Year Parts & Labor Warranty

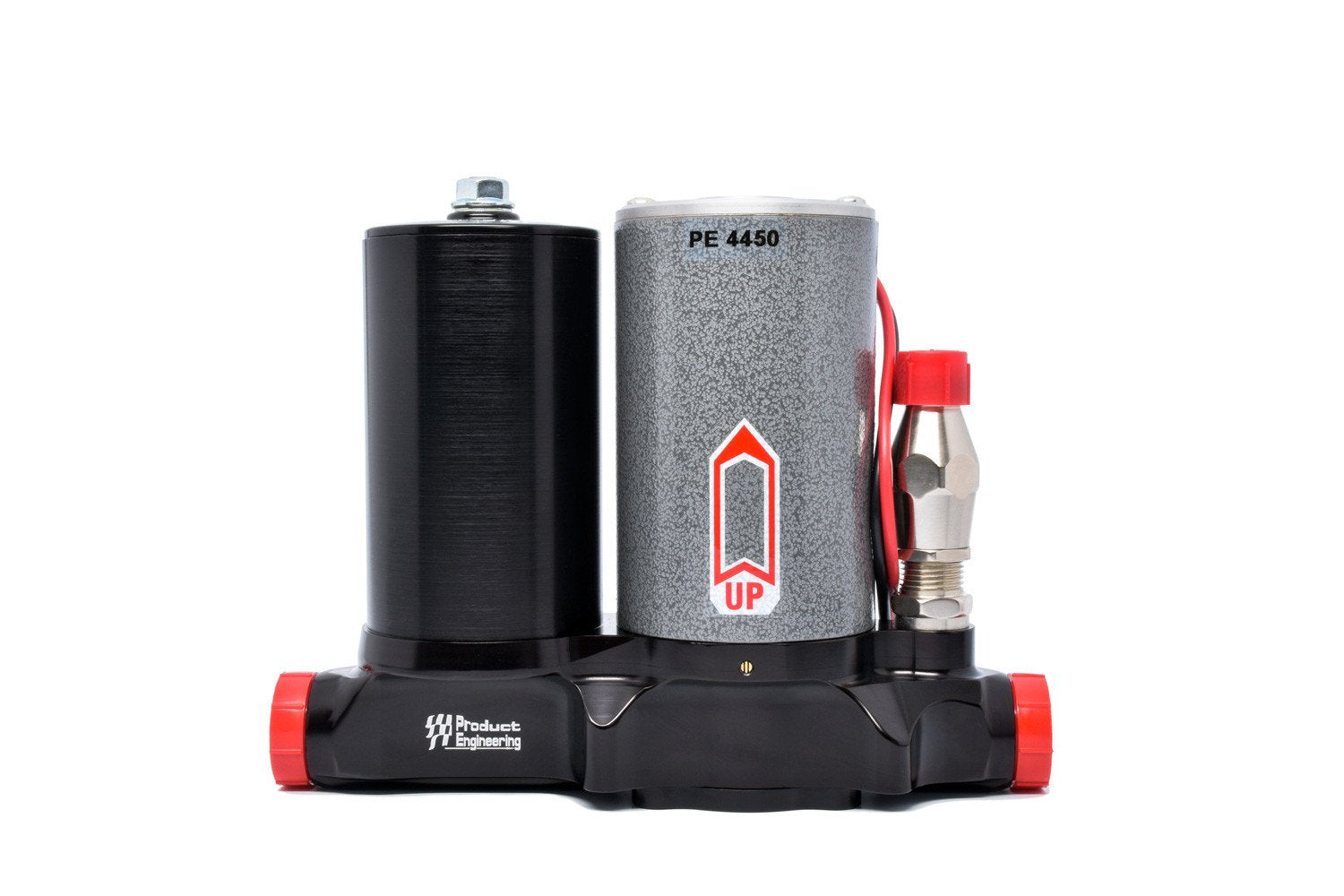

This is the only pump designed exclusively for carbureted blow-thru engines. The maximum output pump for carbureted blow-thru applications up to 22 PSI max or 1500 horsepower. It can handle single or twin carbs! Although referred to as a 'racing fuel pump' this pump as well as all of our others, is perfectly at home on high-performance street cars. The custom built, heavy duty 3 " diameter motor is made specifically for continuous duty. The body is CNC machined from 6061-T6 billet aluminum and hard anodized for exceptional wear characteristics. The 7 vane impeller promotes excellent priming and smooth flow. Its cleanable filter element is a synthetic mesh screen which free flows 4000 GPH.
We recommend using Dual 16 Volt Batteries
Must use Dual Electric Relay Harness
Click here for mounting kits, fittings & pump wiring harness.
